Product Detail

SSL20

SSL20

Total 3 Size:S,M,L

Wattage : 30-180W

Grade:IP66,IK08

Voltage:AC90-305V

Adapter:adjustable angle -15° to 15°

Photocell:nema & zhaga socket both ok


最小定量
100
Collect
产品编号 SSL20
  • 商品说明

Advantge for this series

- Pure Die Casting Aluminum Housing, good at heat dissipation;

- Power Range: from 30W up to 180W;

- Use Philips Lumileds/CREE LED chip，other brands on request;

- Total harmonic distortion(THD)<15%;

- Luminaire Efficiency up to 120 lm/w - 140 lm/w;

- Adjustable arm:both horizontal and vertical installation available;

- The lamp post can be adjusted to plus or minus 15 degrees

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.


Specification


Model Number

SSL20-S

SSL20-M

SSL20-L

Power

30-60W

80-120W

150-180W

LED Source Type

SMD 3030 5050

SMD 3030 5050

SMD 3030 5050

Color Temperature

2700~6500K

2700~6500K

2700~6500K

Efficacy

120-160LM/W

120-160LM/W

120-160LM/W

Voltage

AC100-277V

AC100-277V

AC100-277V

Power Factor

PF≥0.95

PF≥0.95

PF≥0.95

CRI(Ra)

Ra≥70

Ra≥70

Ra≥70

THD

<15%

<15%

<15%

Operate Temperature

-40~+50℃

-40~+50℃

-40~+50℃

Ambient Humidity

10%-90%RH

10%-90%RH

10%-90%RH

Lifetime(hrs)

>50000

>50000

>50000

IP Rate

IP66

IP66

IP66

Installation Pipe Diameter

Φ60mm

Φ60mm

Φ60mm

Pcs/CTN

1

1

1

Net Weight

3.2kg

4.2kg

5.2kg

Gross Weight

4.2kg

5.2kg

6.2kg

Packing Size(mm)

605x236x120

670x275x120

735x325x124

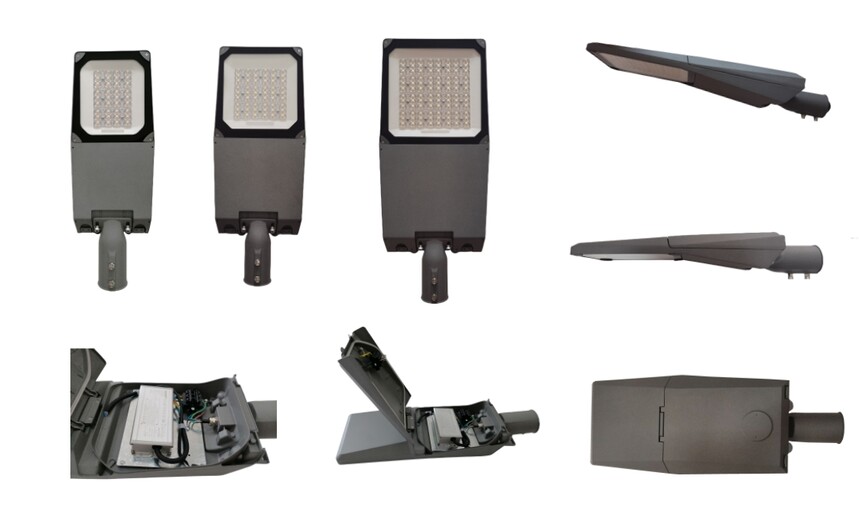

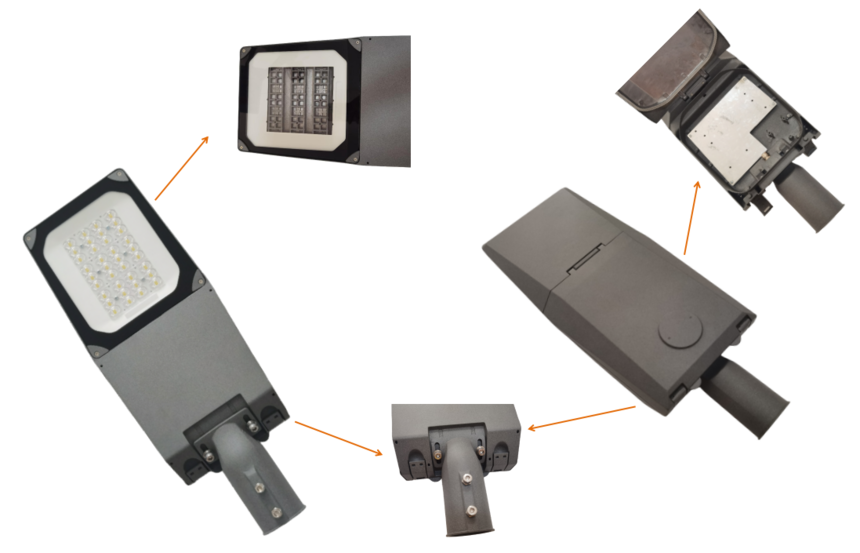

Product Detail

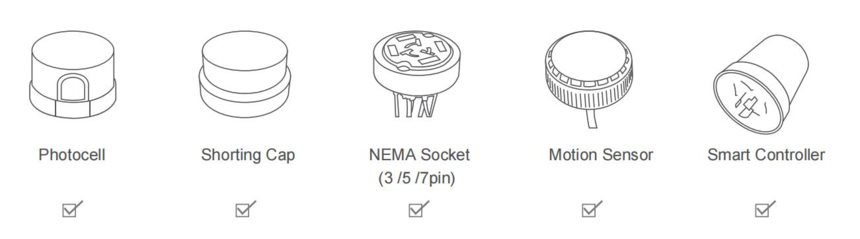

Optional Accessories

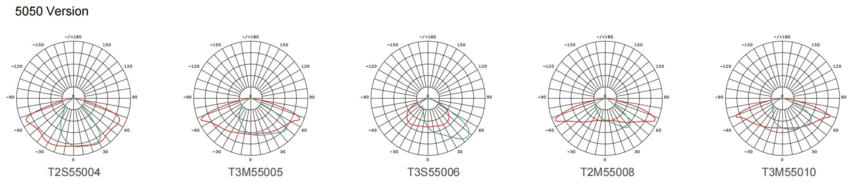

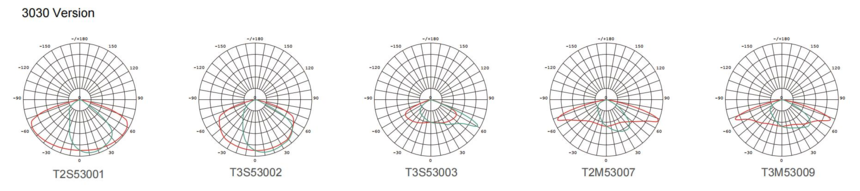

Light distributions

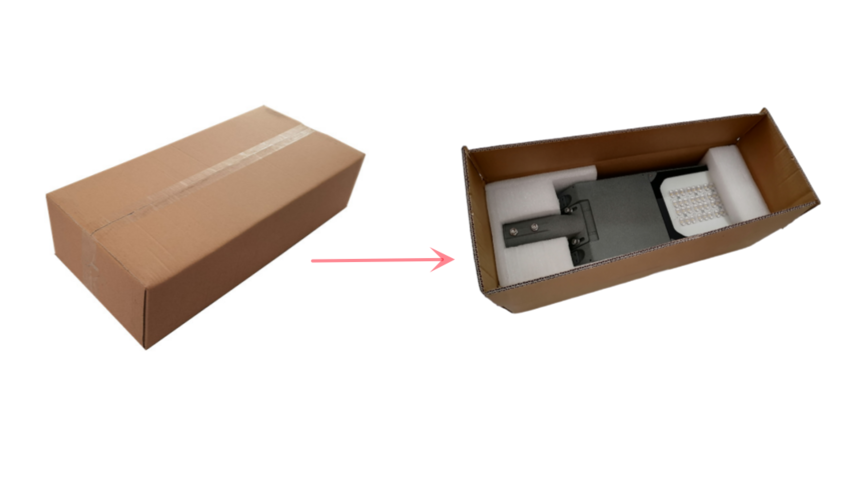

Package Detail
