SSL10

Total 5 Size:XS,S,M,L,XL

Wattage : 30-240W

Grade:IP66,IK08

Light source type:COB

Collect

产品编号 SSL10

商品说明

The advantage of model SSL10:

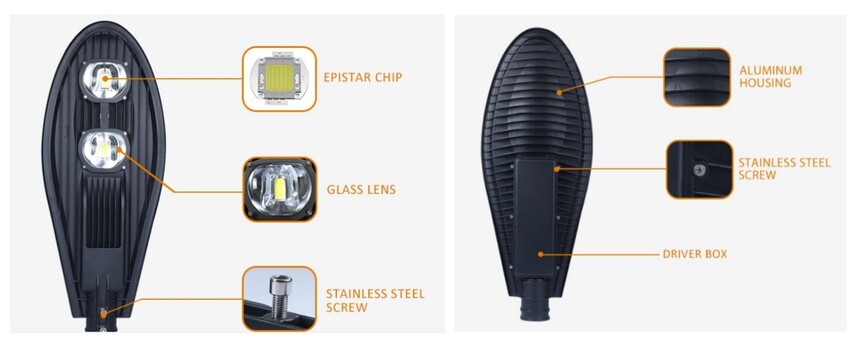

- Pure die casting aluminum housing cover with glass lens;

- Radiating fin on back design increases heat disspation during working condition;

- Power range:from 30W t0 240W;

-High Lumen efficiency up to 160lm/w;

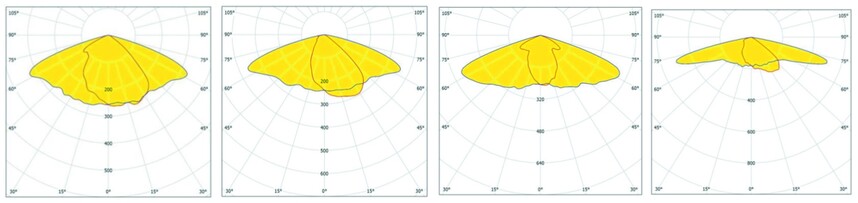

- Multiple light distribution;

- We can offer housing.semi-finished product and complete light.and provide professional customized service such as printing logo on housing.manual and logo on carton box according to your requirements.

Applications:

Specification:

Model No	SSL10-A	SSL10-B	SSL10-C	SSL10-D	SSL10-E
Power	30W	50W	80W	120W	180W
Light Source Type	COB	COB	COB	COB	COB
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF＞0.95	PF＞0.95	PF＞0.95	PF＞0.95	PF＞0.95
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
CRI	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Ambient Temperature	-40~50℃	-40~50℃	-40~50℃	-40~50℃	-40~50℃
Lifetime(hrs)	50000	50000	50000	50000	50000
Installation Pipe Diameter	Φ50mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Net Weight	2.0kgs	2.7kgs	3.7kgs	4.8kgs	6.9kgs
Gross Weight	2.4kgs	3.0kgs	4.0kgs	5.2kgs	7.6kgs
Product Size(mm)	400x171x58	500x214x66	621x261x83	720x280x95	881x300x101
Packing Size(mm)	440x195x220	545x230x115	665x300x140	765x300x140	905x355x150
