Product Detail

SSL05B

SSL05B Led Street Light

Total 3 Size:S,M,L

Wattage : 30-150W

Grade:IP66,IK08

Voltage:AC90-305V

Adapter:adjustable angle -15° to 15°

Photocell:nema & zhaga socket both ok


Collect
产品编号 SSL05B
  • Description

Advantages for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

- Power Range: from 30W up to 150W;

- LED and driver brands on request;

- Luminaire Efficiency up to 120 lm/W - 160 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Side Entry Installtion or Post Top Installation and adjustable angle -15 °to 15 °;

- Reserved interface on back of housing for Nema or Zhaga socket.


Specification

Model NumberSSL05B-SSSL05B-MSSL05B-L
Power30-40W50-100W120-150W
Color Temperature3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
IP RateIP66IP66IP66
Installation Pipe DiaΦ50/60mmΦ50/60mm
Φ60/70mm
Net Weight3.3kgs6.3kgs11.6kgs
Gross Weight3.8kgs7.3kgs12.6kgs
Product Size(mm)518x238x118646x304x140864x375x168
Package Size(mm)

560x265x145

700x350x160

915x415x190


Pictures

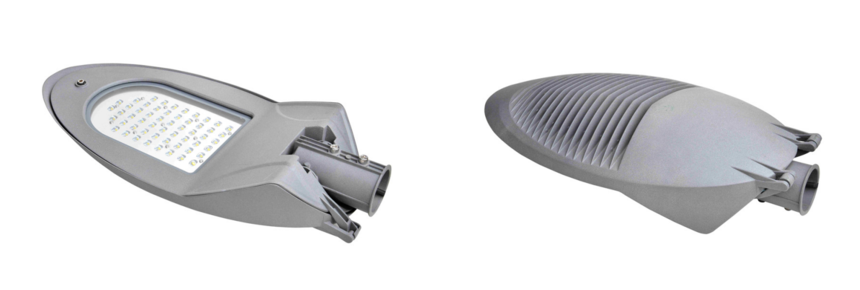

                                       Front                                                                                                          Back

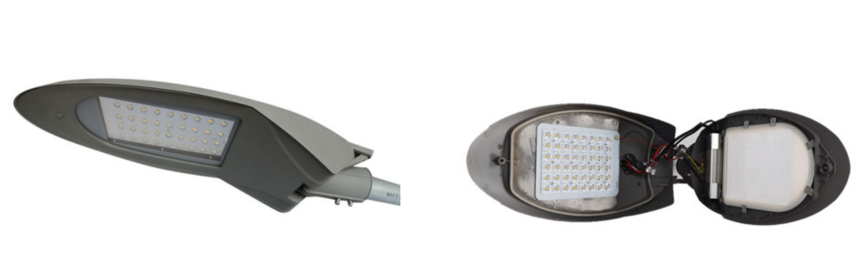

                                   Side                                                                                      Open

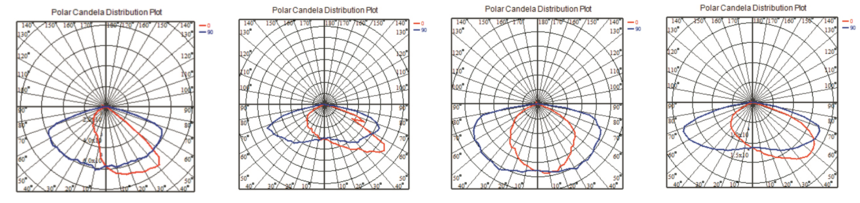

Light distributions

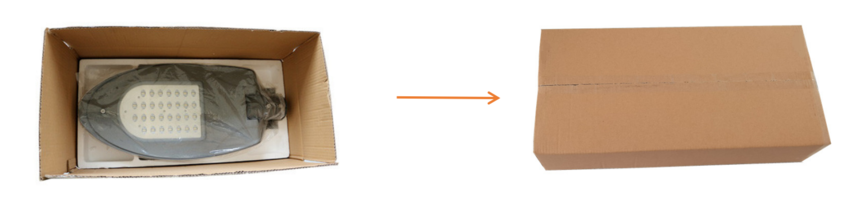

Package
