Ningbo Spark Trading Co.,Ltd

Product Detail

SSL15

Total 4 Size:S,M,L

Wattage : 30-240W

Grade:IP66,IK08

Voltage:AC100-277V

Photocell:nema & zhaga socket both ok

Housing color:gray.black.silver.other customized color

Installation:Both Horizontal and Vertical available


Collect
产品编号 SSL15
  • 商品说明

The advantage of model SSL15:

-The light housing could be opened by hand without tool;

- Pure Die Casting Aluminum Housing, Tempered glass ;

- Power Range: from 30W up to 240W;

- Luminaire Efficiency up to 120 lm/W - 150 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Side Entry Installtion or Post Top Installation and adjustable angle -20°to  20 °;

- Multiple Light Distribution optional;

- Repair light without main power off by help of power off switch device;

- Reserved interface on back of housing for Nema or Zhaga socket;

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.


Applications:

Street | Road | Highway | Parking lot | Bridge | Path | Viaduct | Public area | Industrial area


Specification:

Model NoSSL15-SSSL15-MSSL15-L
Power30-80W
100-150W
180-240W
Light Sources TypesSMD3030 5050SMD3030 5050SMD3030 5050
Input VoltageAC100-277VAC100-277VAC100-277V
Frequency Range50/60Hz50/60Hz
50/60Hz
Power FactorPF>0.95PF>0.95PF>0.95
Color Temperature2700-6500K2700-6500K2700-6500K
Efficiency140-150lm/w140-150lm/w140-150lm/w
CRIRa>80Ra>80Ra>80
Ambient Temperature-35~50℃-35~50℃-35~50℃
Lifetime(hrs)600006000060000
Installation Pipe DiameterΦ60mmΦ60mmΦ60mm
Net Weight4.5kgs5.2kgs6.5kgs
Gross Weight4.9kgs5.7kgs7.2kgs
Product Size(mm)595x265x130640x330x145740x380x145
Packing Size(mm)561x246x107619x295x112
705x345x112

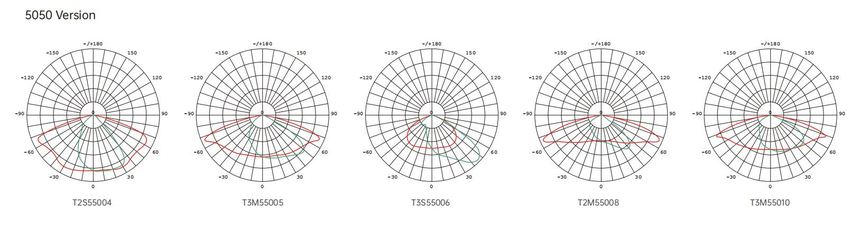

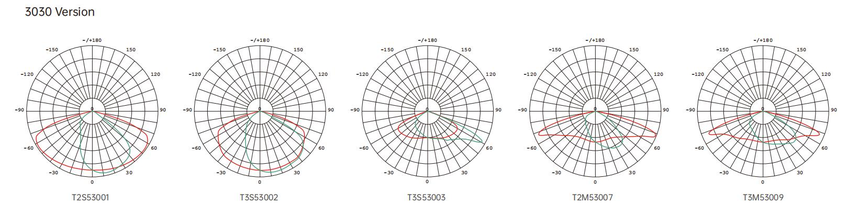

Lighting Photomatrics:

Detail Pictures:

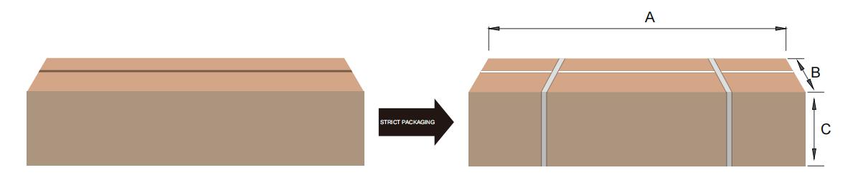

Package:
