Product Detail

SSL18

Total 4 Size:S,M,L,XL

Wattage : 30-240W

Grade:IP66,IK08

Voltage:AC90-305V

Adapter:adjustable angle -15° to 15°

Photocell:nema & zhaga socket both ok


最小定量
100
Collect
产品编号 SSL18
  • 商品说明

Advantge for this series

- Pure Die Casting Aluminum Housing, good at heat dissipation;

- Power Range: from 30W up to 240W;

- Use Philips Lumileds/CREE LED chip，other brands on request;

- Total harmonic distortion(THD)<15%;

- Luminaire Efficiency up to 110 lm/W

 - 140 lm/W; - Adjustable arm:both horizontal and vertical installation available;

- The lamp post can be adjusted to plus or minus 15 degrees

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.


Specification

Model NumberSSL18-SSSL18-MSSL18-LSSL18-XL
Power30-60W80-120W150-180W200-240W
Color Temperature3000-6500K3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
IP RateIP66IP66IP66IP66
Installation Pipe DiaΦ50/60mmΦ50/60mm
Φ60mmΦ60mm
Net Weight3.2kgs5.0kgs6.4kgs8.0kgs
Gross Weight3.8kgs5.6kgs7.2kgs9.0kgs
Product Size(mm)498x180x115629x250x125698x280x125720x300x125
Package Size(mm)

650X230X190


680X300X190


750X330X190


770X350X190

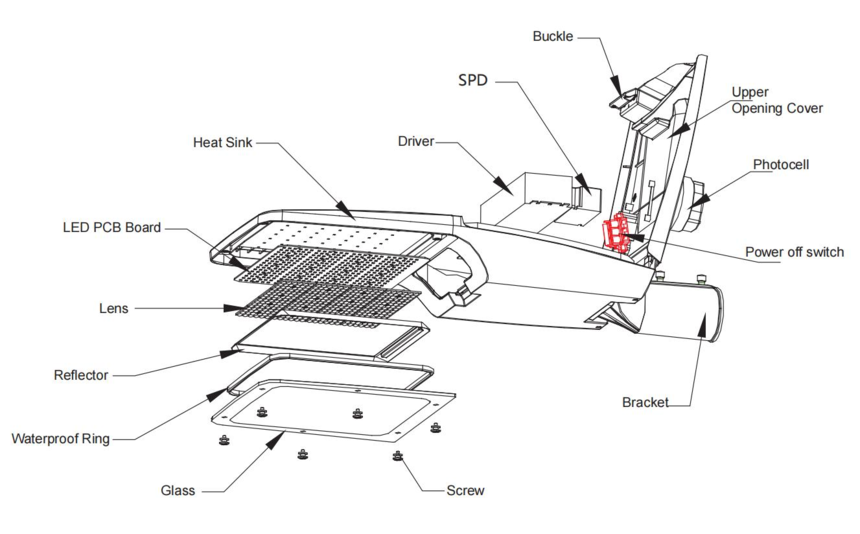

Product Details

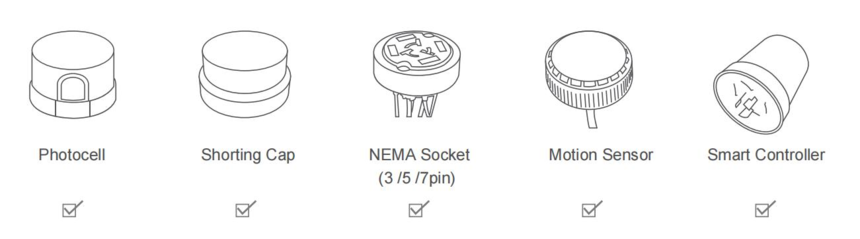

Optional Accessories

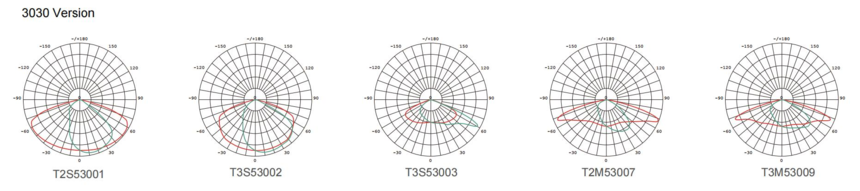

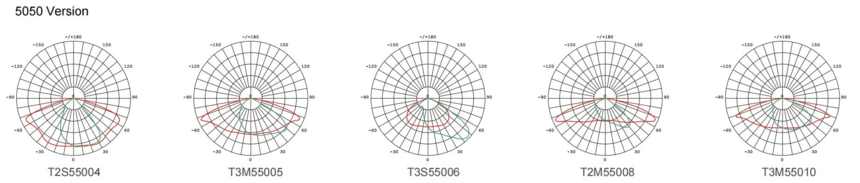

Light distributions

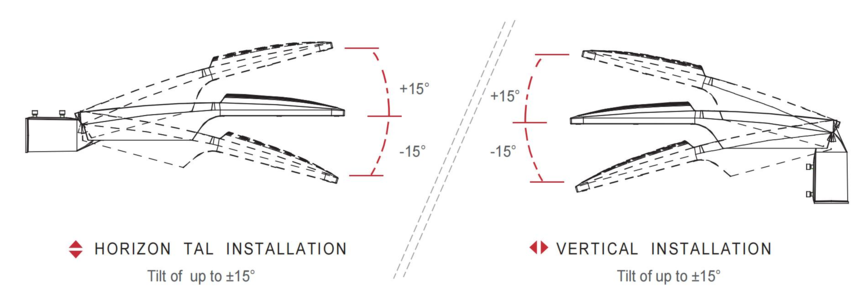

Installation


Package Detail
