Product Detail

SSL03B

SSL03B

Total 5 Size:XS,S,M,L,XL

Wattage : 30-250W

Grade:IP65,IK08

Voltage:AC90-305V

Adapter:adjustable angle -15° to 15°

Photocell:nema & zhaga socket both ok


最小定量
100
Collect
产品编号 SSL03B
  • Description
  • Specification

Advantages for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

- Power Range: from 30W up to 250W;

- Philips Lumileds LEDs,other brands on request;

- Inventronics LED Driver, other brands on request;

- Luminaire Efficiency up to 120 lm/W - 160 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Side Entry Installtion or Post Top Installation and adjustable angle -15 °to 15 °;

- Reserved interface on back of housing for Nema or Zhaga socket.

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.

Specification

Model NumberSSL03B-XSSSL03B-SSSL03B-MSSL03B-LSSL03B-XL
Power30-50W60-80W100-120W150-180W200-250W
Color Temperature3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
IP RateIP66IP66IP66IP66IP66
Installation Pipe DiaΦ40mmΦ40mmΦ40mm
Φ60mmΦ60mm
Net Weight2.1kgs2.4kgs3.5kgs5.2kgs6.3kgs
Gross Weight3.1kgs3.4kgs4.5kgs6.2kgs7.3kgs
Product Size(mm)420x180x100
470x180x110560x240x115690x280x130740x280x130
Package Size(mm)

485x240x120


530x240x120


620x290x150


740x340x150


790x340x150


Pictures

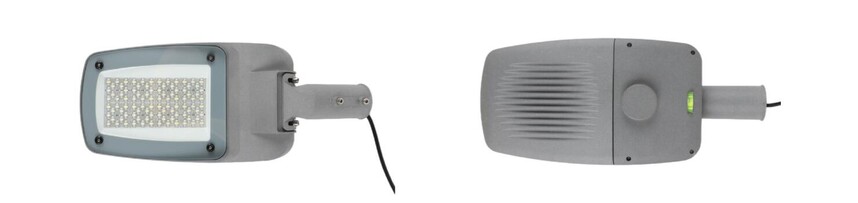

                                Front                                                                                               Back

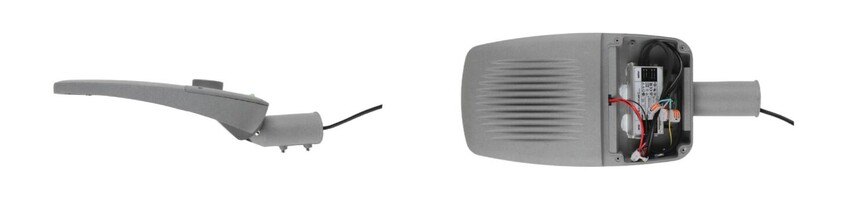

                                  Side                                                                                    Open

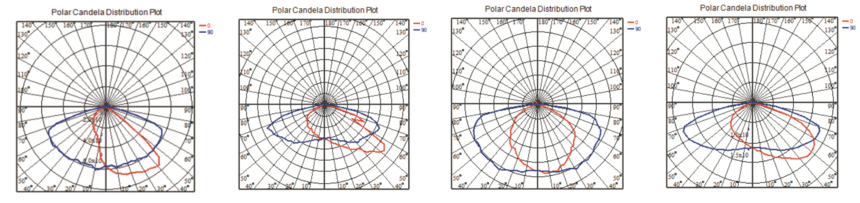

侧面.jpgLight distributions



Package Detail
