SSL13

Total 3 Size:S,M,L

Wattage : 20-200W

Grade:IP65,IK08

Photocell:nema & zhaga socket both ok

Housing color:gray.black.silver.other customized color

Installation:Both Horizontal and Vertical available


Collect
产品编号 SSL13
  • 商品说明

The advantage of model SSL13:

- Pure Die Casting Aluminum Housing, Tempered glass.the lamp is small and light.design for low power;

- Power Range: from 20W up to 100W;

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Multiple Light Distribution;

- Reserved interface on back of housing for Nema or Zhaga socket.

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.



Applications:

Street | Road | Highway | Parking lot | Bridge | Path | Viaduct | Public area | Industrial area


Specification:

Model NoSSL13-SSSL13-MSSL13-L
Power20-40W
50-60W80-100W
Light Sources TypesSMD3030 5050SMD3030 5050SMD3030 5050
Input VoltageAC90-305VAC90-305VAC90-305V
Frequency Range50/60Hz50/60Hz50/60Hz
Power FactorPF>0.90PF>0.90PF>0.90
Color Temperature2700-6500K2700-6500K2700-6500K
Efficiency100-130lm/w100-130lm/w100-130lm/w
CRIRa>70Ra>70Ra>70
Ambient Temperature-35~40℃-35~40℃-35~40℃
Lifetime(hrs)500005000050000
Installation Pipe DiameterΦ40mmΦ50mmΦ60mm
Product Size(mm)330x150x65375x150x65525x180x75
Packing Size(mm)385x165x80513x213x90605x265x90

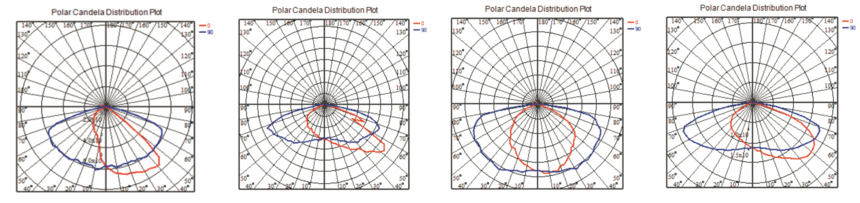

Lighting Photomatrics:


Detail Pictures:

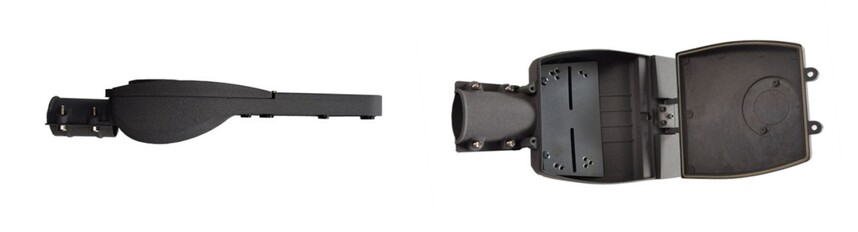

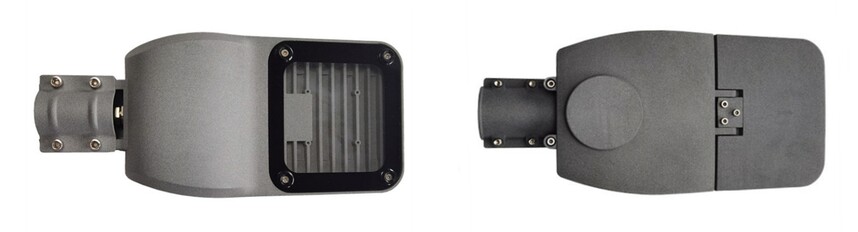

                                     Front                                                                                                  Back

正面反面.jpg                                      Side                                                                                           Inside of lamp
