Product Detail

SSL07

SSL07 Led Street Light

Total 3 Size:S,M,L

Wattage : 40-240W

Grade:IP65,IK08

Voltage:AC90-305V

Adapter:adjustable angle -15° to 15°

Photocell:nema & zhaga socket both ok


Collect
产品编号 SSL07
  • Description

Advantages for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

- Power Range: from 40W up to 240W;

- LED and driver brands on request;

- Luminaire Efficiency up to 120 lm/W - 160 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

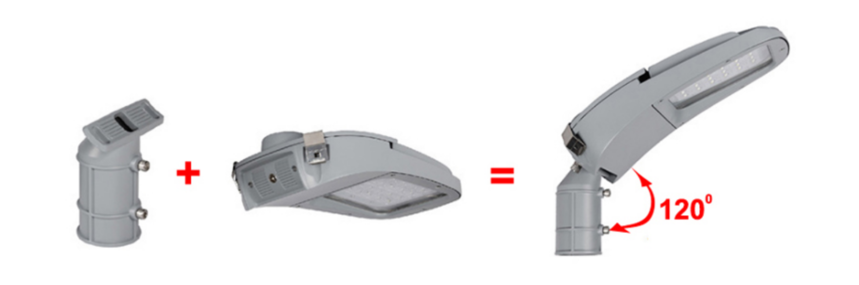

- Side Entry Installtion or Post Top Installation and adjustable angle -15 °to 15 °;

- Reserved interface on back of housing for Nema or Zhaga socket.

Specification

Model NumberSSL07-SSSL07-MSSL07-L
Power40-80W100-150W180-240W
Color Temperature3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
IP RateIP65IP65IP65
Installation Pipe DiaΦ60mmΦ60mm
Φ60mm
Net Weight3.2kgs5.4kgs8.3kgs
Gross Weight3.8kgs6.3kgs9.7kgs
Product Size(mm)540x240x140605x295x150700x305x150
Package Size(mm)

575x285x170

645x345x200

747x360x180


Pictures

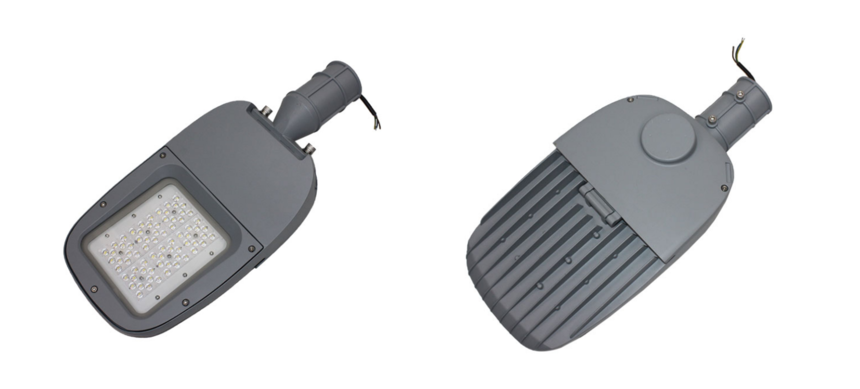

                                                  Front                                                                              Back

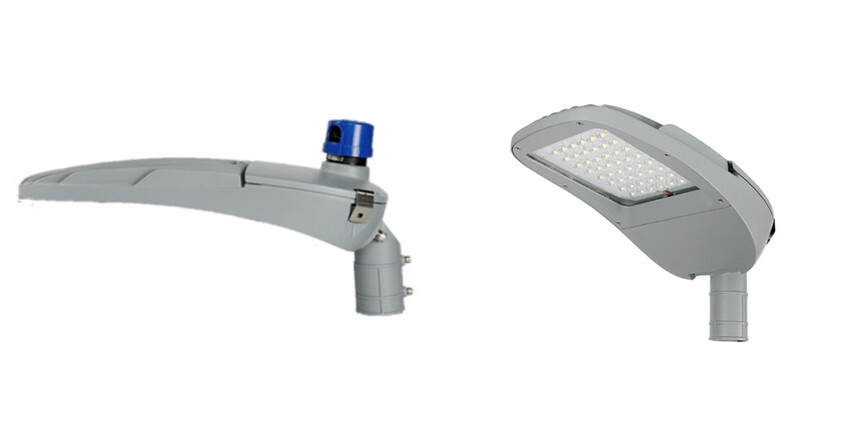

                                       Side                                                                            Side

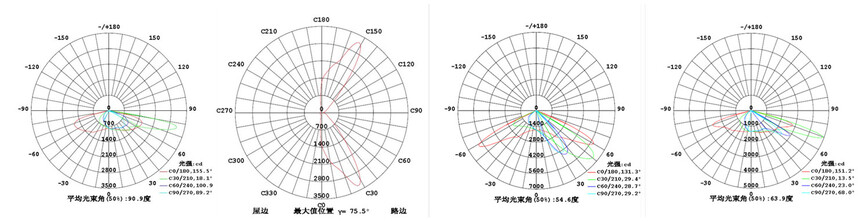

Light distributions

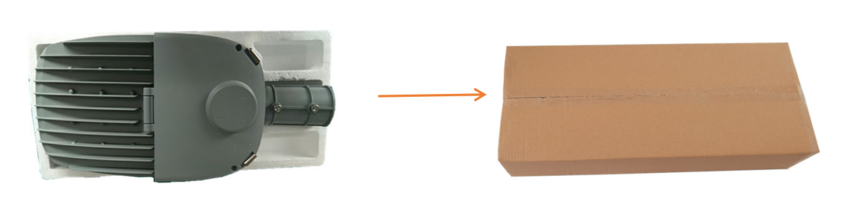

Package

07 package.png
