Product Detail

SSL06

SSL03 Led Street Light

Total 4 Size:S,M,L,XL

Wattage : 50-400W

Grade:IP66,IK08

Voltage:AC90-305V

Photocell:nema & zhaga socket both ok


Collect
产品编号 SSL06
  • Description










Advantages for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

- Larger wattage from 50W up to 400W;

- Luminaire Efficiency up to 120 lm/W - 160 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Reserved interface on back of housing for Nema or Zhaga socket.

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.


Specification

Model NumberSSL06-SSSL06-MSSL06-LSSL06-XL
Power50-80W100-180W180-240W350-400W
Color Temperature3000-6500K3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
IP RateIP65IP65IP65IP65
Installation Pipe DiaΦ50mmΦ60mmΦ60mm
Φ60mm
Net Weight3.1kgs5.7kgs7.6kgs11.5kgs
Gross Weight3.5kgs6.2kgs8.2kgs12.5kgs
Product Size(mm)516x228x114
750x322x167900x386x1671100x460x170
Package Size(mm)

610*260*150

845*360*160

1000*450*200

1222*240*570


Pictures

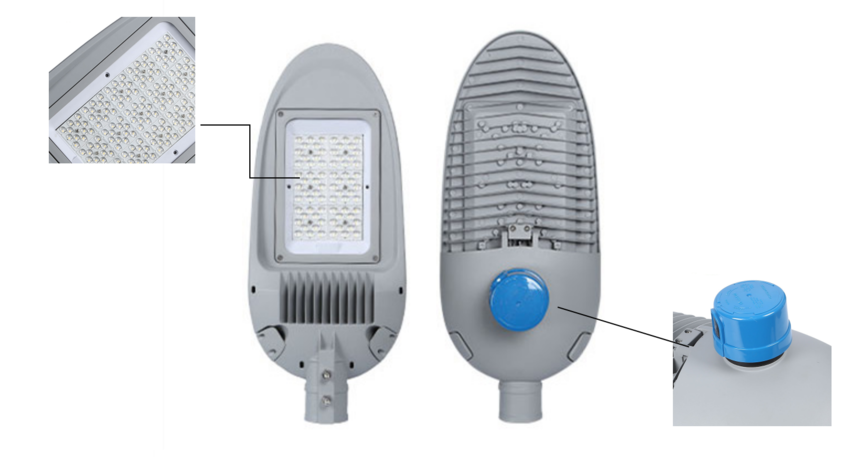

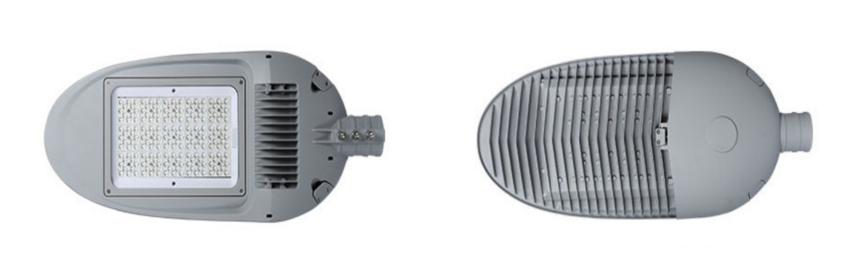

                                           Front                                                                                                     Back

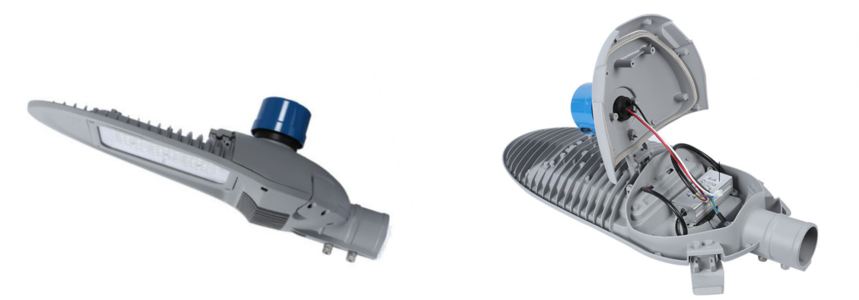

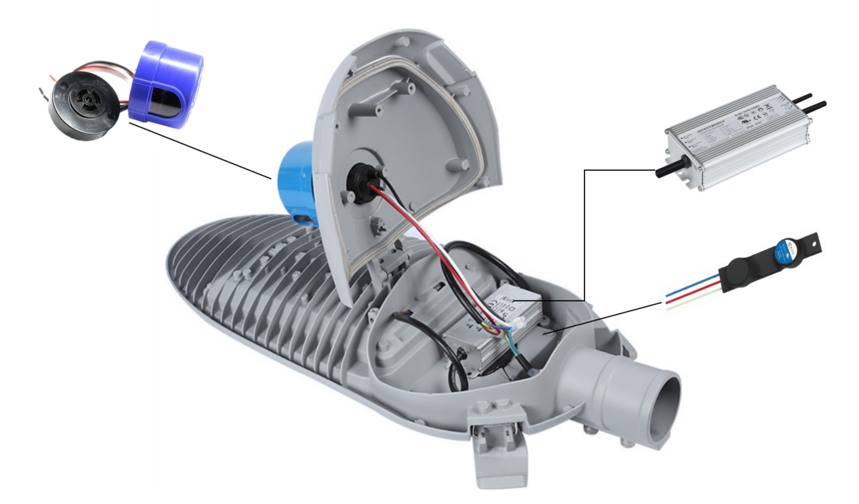

                                    Side                                                                                      Open

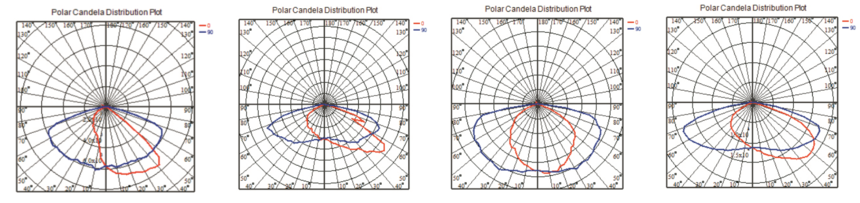

Light distributions


Package

SSL-06S,M,L

package 3.pngSSL-06XL

PACKAGE 2.png
