Advantages for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

- Intergrated housing design increases heat disspation during working condition;Unique back design effectively enhances cleaning  and water filtrantion under severe operating conditions;

- Power Range: from 20W up to 200W;

- Philips Lumileds LEDs,other brands on request;

- High End Programmable Inventronics LED Driver, other brands on request;

- Luminaire Efficiency up to 120 lm/W - 160 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

- Side Entry Installtion or Post Top Installation and adjustable angle -15 °to 15 °;

- Multiple Light Distribution;

- Reserved interface on back of housing for Nema or Zhaga socket.

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.

Specification

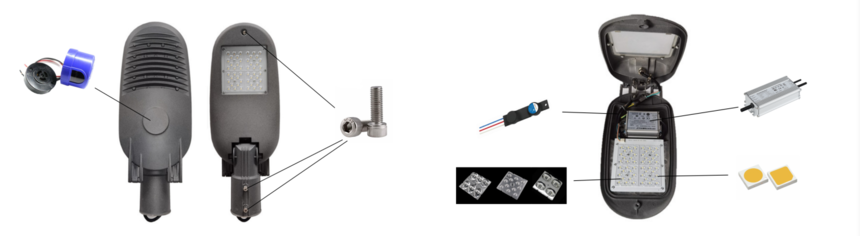

Pictures

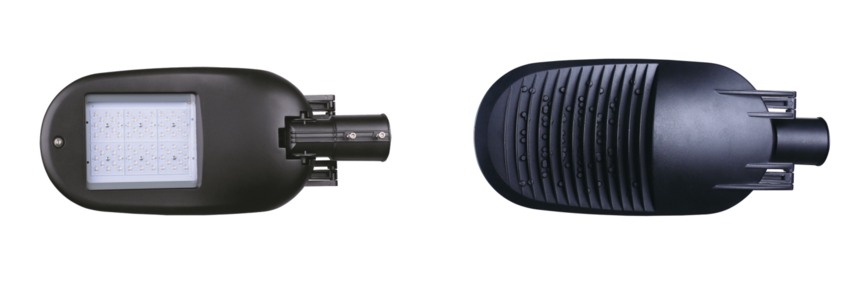

                                   Front                                                                                                           Back

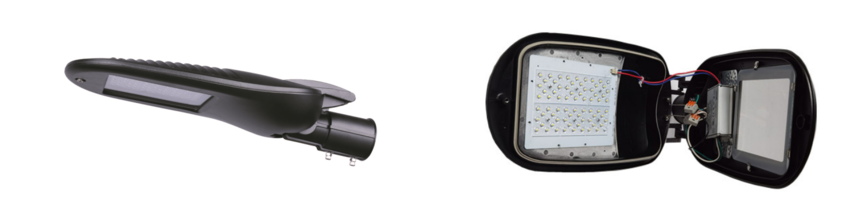

                                Side                                                                                                                Open

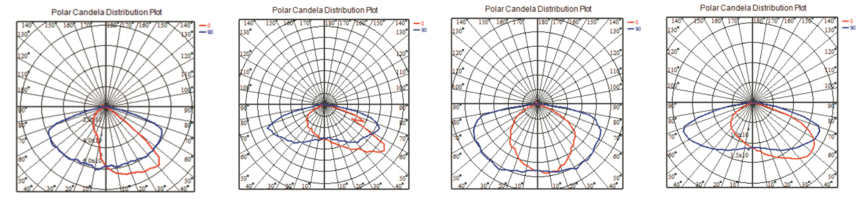

Light distributions

Package Detail

SSL-02XS S

SSL-02 M L
