Product Detail

SFL03

Total 4 Size:A,B,C,D

Wattage : 100-800W

Grade:IP65,IK08

Voltage:AC90-305V


最小定量
500
Collect
产品编号 SFL03
  • 商品说明

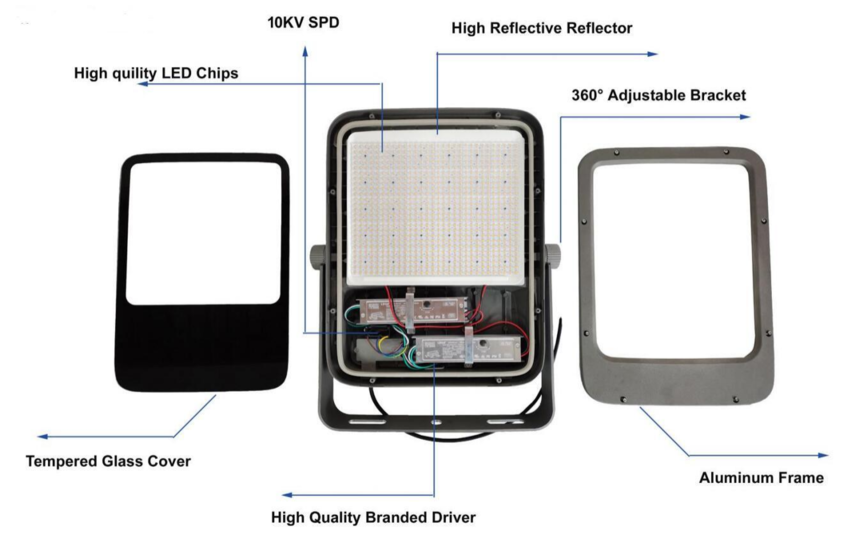

Advantage for this family

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV

-resistant Polycarbonate;

- Power Range: from 100W up to 800W;

- LED version optional:2835.3030.5050

- Luminaire efficacy: Up to 170 lm /w;

- Wide choice of optics to suit more applications (asymmetrical and symmetrical);

- Equip with vent to avoid internal fogging and frosting;

- Lifetime more than 50, 000 hours;

- Buckle design makes it very easy for further maintenance;

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements


Specification odel No SFL03-A SFL03-B SFL03-C SFL03-D

Model NumberSFL03-ASFL03-BSFL03-CSFL03-D
Power100-150W200-300W400-500W600-800W
Color Temperature3000-6500K3000-6500K3000-6500K3000-6500K
VoltageAC90-305VAC90-305VAC90-305VAC90-305V
Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)Ra≥70(80optional)
Mounting TypeBracket mountedBracket mountedBracket mountedBracket mounted
Mounting LocationWall /Pole /Floor /CeilingWall /Pole /Floor /CeilingWall /Pole /Floor /CeilingWall /Pole /Floor /Ceiling
IP RateIP65IP65IP65IP65
PCS/CTN6411
Net Weight19.2kgs19.2kgs10.6kgs15.5kgs
Gross Weight25.2kgs24.0kgs12.6kgs17.0kgs
Product Size(mm)353x258x58
419x318x66586x440x89714x533x98
Package Size(mm)

640 x290 x420


460 x350 x490


660 x460 x150


770 x590 x160

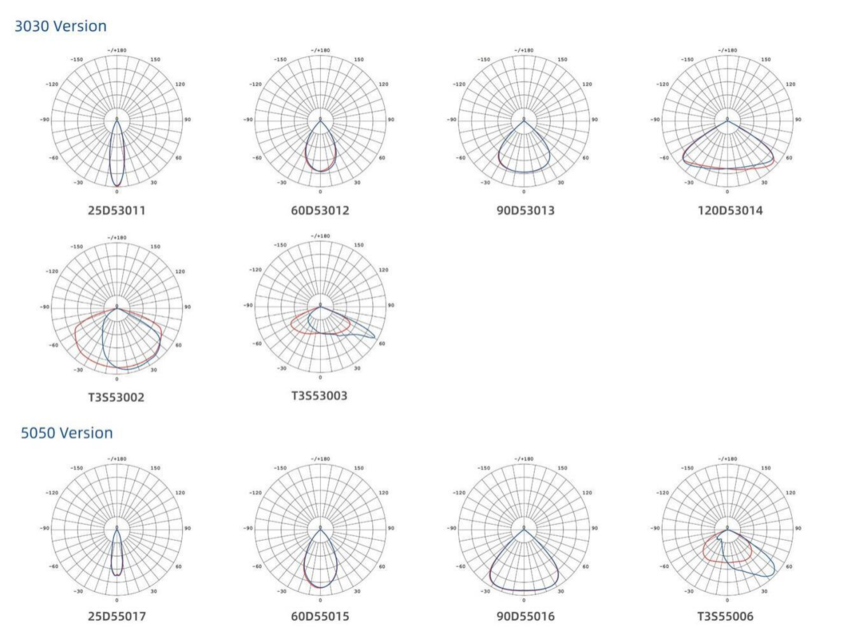

Lighting Photomatrics



Detail Pictures

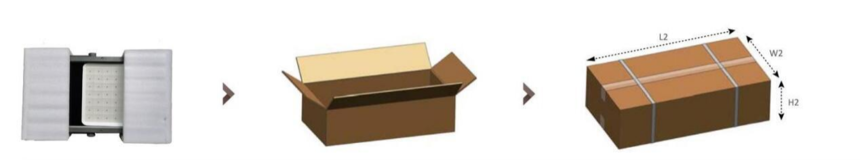

Packing Method
