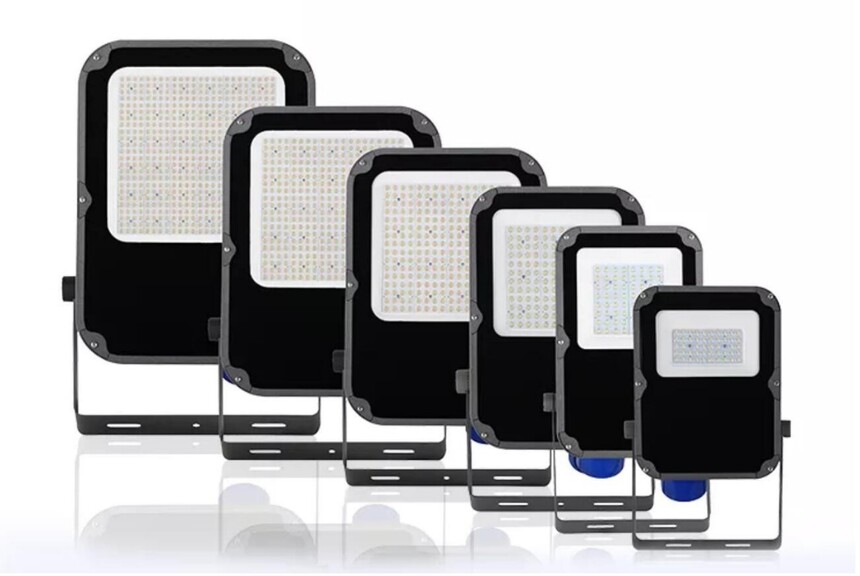

SFL05

Total 6 sizes

Wattage: 30w-500w

Grade:IP66,IK08

High lumen up tp 130lm/w

Housing color:gray.black.silver.any other customized color

Collect

产品编号 SFL05

The advantage of model SFL05:

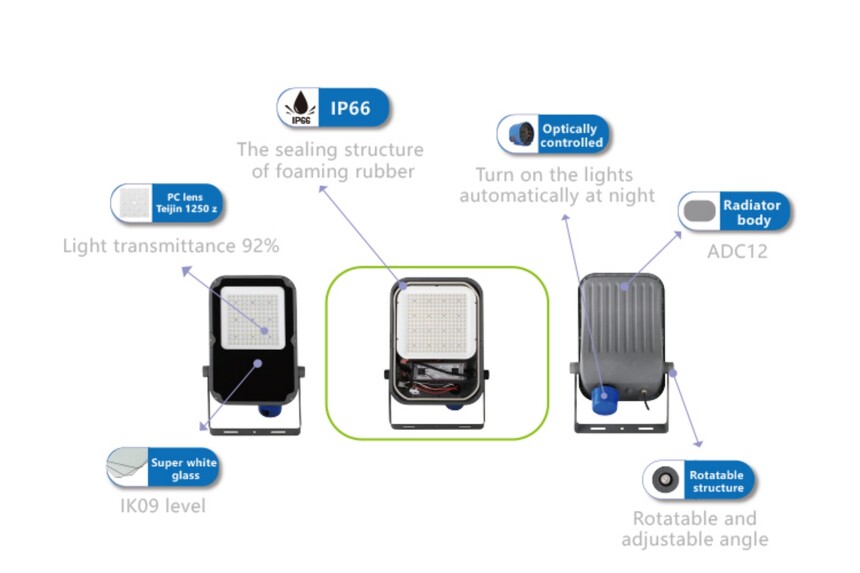

- High quality aliminum housing with tempered glass.good at heat dissipation;

- Power Range: from 30W up to 500W;

- Luminaire Efficiency up to 140 lm/W ;

- With Surge Projector to protect lamp from up to 10KV/10KA;

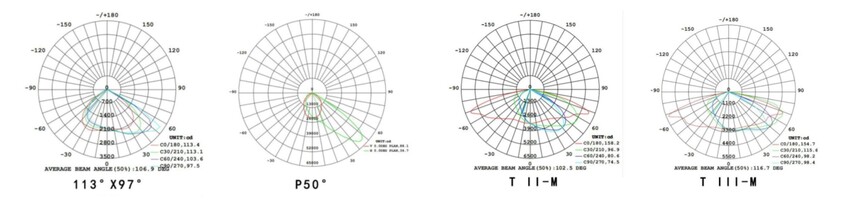

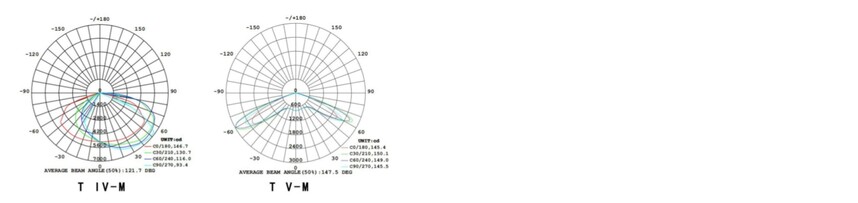

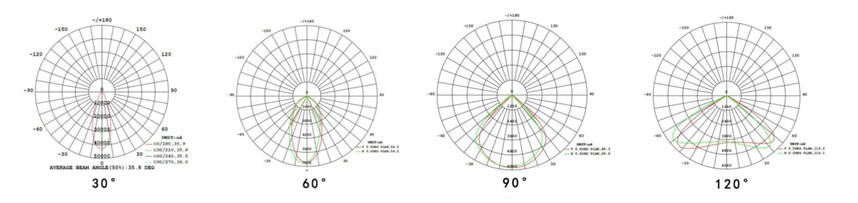

- Multiple Light Distribution;

- Motion sensor available.support dimming;

- Total harmonic distortion(THD)<10%;

- 100,000 times switching cycle before failure;

- Angle Bracket,easy to install by drill.Easy replacement and installation;

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.

Applications:

Specification:

Model No	SFL05-A	SFL05-B	SFL05-C	SFL05-D	SFL05-E	SFL05-F
Power	30W	50W	80-100W	150-200W	240-300W	400-500W
Light Sources Types	SMD3030 5050	SMD3030 5050	SMD3030 5050	SMD3030 5050	SMD3030 5050	SMD3030 5050
Input Voltage	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF＞0.95	PF＞0.95	PF＞0.95	PF＞0.95	PF＞0.95	PF＞0.95
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
CRI	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Working Temperature	-30℃ ~+50℃	-30℃ ~+50℃	-30℃ ~+50℃	-30℃ ~+50℃	-30℃ ~+50℃	-30℃ ~+50℃
Lifetime(hrs)	50000	50000	50000	50000	50000	50000
Warranty	3-5years	3-5years	3-5years	3-5years	3-5years	3-5years
Product Size(mm)	348x247x71	398x249x69	456x308x73	529x360x73	562x472x79	667x536x80
Net Weight	1.8kgs	2.7kgs	4.6kgs	6.3kgs	8.2kgs	9.9kgs
Gross Weight	2.5kgs	3.2kgs	5.4kgs	7.1kgs	9,3kgs	10.9kgs
Packing size(mm)	330x260x130	380x260x130	435x320x130	485x380x140	540x490x140	590x560x140
