Product Detail

SFL02

Total 4 sizes

Wattage: 30w-400w

Grade:IP66,IK10

High lumen up tp 170lm/w

Housing color:gray.black.silver.any other customized color


Collect
产品编号 SFL02
  • 商品说明

The advantage of model SFL02:

- Up to 100, 000hrs @ L70, low maintenance cost

- Equipped with vent to avoid internal fogging and frosting

- Wide choice of optics to suit more applications (asymmetrical and symmetrical)

- Buckle design makes it very easy for further maintenance

- Luminaire efficacy: Up to 170 lm /w

- Impact resistance: IK10.Type of protection: IP66


Application:

Recreational sports | Billboard lighting | Accent lighting | Parking lots | Roundabout | Outdoor sports etc


Specification:


Model NoSFL02-ASFL02-BSFL02-CSFL02-D
Power30-50W60-120W150-240W320-400W
Light Sources TypesSMD3030 5050 SMD3030 5050 SMD3030 5050 SMD3030 5050
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz
Input VoltageAC100-240VAC100-240VAC100-240AC100-240V
Power FactorPF＞0.95PF＞0.95PF＞0.95PF＞0.95
Color Temperature2700-6500K
2700-6500K2700-6500K2700-6500K
CRIRa>70Ra>70Ra>70Ra>70
Working Temperature-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃
Lifetime(hrs)50000500005000050000
Product Size(mm)345x226x81447x321x90
495x378x90639x507x92
Net Weight2.3kgs4.4kgs6.0kgs12.0kgs
Gross Weight2.9kgs4.9kgs6.7kgs13.5kgs
Packing Size(mm)350 x295 x145425 x385 x140470 x445 x145655 x570 x180

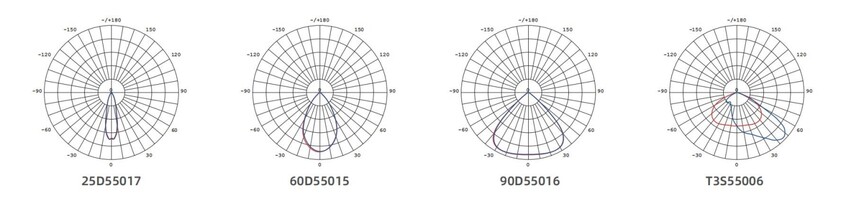

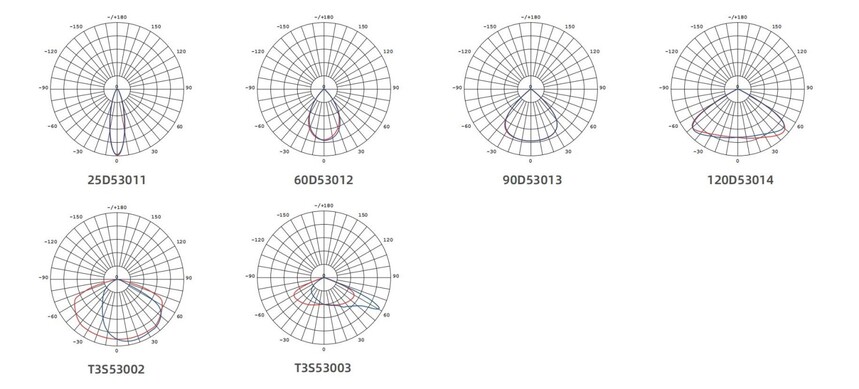

Lighting Photomatrics:

3030 LED Chip

3030配光.jpg5050 LED Chip

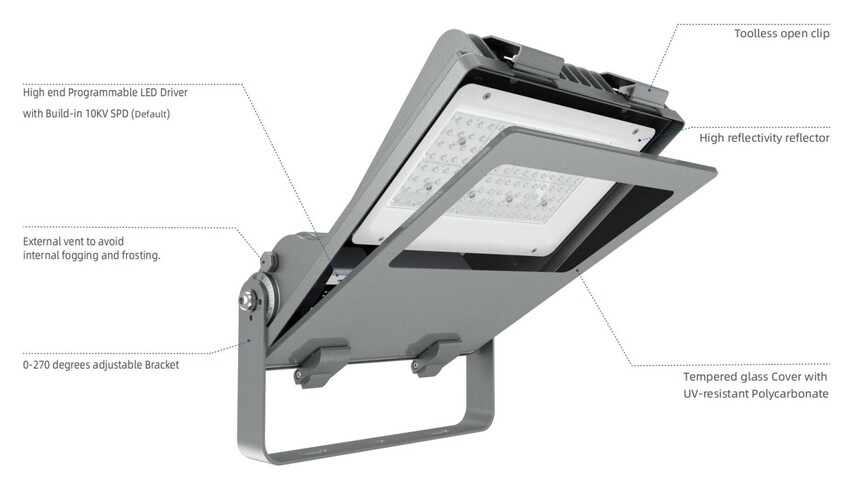

Detail Pictures:

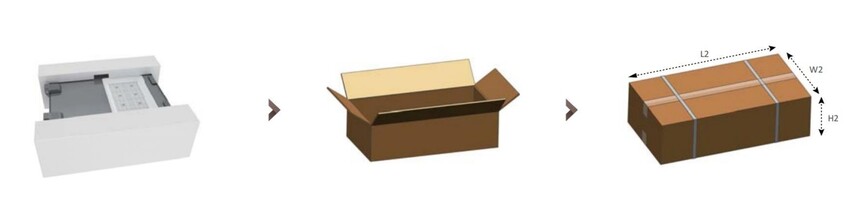

Way Of Packing
