SFL06

Total 8 sizes

Wattage: 10w-300w

Grade:IP66,IK08

Four options of the lighting ways.

Housing color:gray.black.silver.any other customized color


Collect
产品编号 SFL06
  • 商品说明

The advantage of model SFL06:

High quality aliminum housing with tempered glass.good at heat dissipation;

- Power Range: from 10W up to 300W;

- Osram 2835 LED chip.Luminaire Efficiency up to 130 lm/W ;

- Motion sensor available.support dimming;

Angle Bracket,easy to install by drill.Easy replacement and installation;

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.


Applications:

Tunnel  Supermarket Billboard | Building | Airports Stadium Train/Bus stations | Manufacture Warehouses Parking lots Exhibition centers etc


Specification:

Model NoSFL06-ASFL06-BSFL06-CSFL06-DSFL06-ESFL06-FSFL06-GSFL06-H
Power10W
20W30W
50W100W150W200W300W
Light Sources TypesSMD2835SMD2835SMD2835SMD2835SMD2835SMD2835SMD2835SMD2835
Input VoltageAC85-265V
AC85-265VAC85-265VAC85-265VAC85-265VAC85-265VAC85-265VAC85-265V
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Power FactorPF>0.9PF>0.9PF>0.9PF>0.9PF>0.9PF>0.9PF>0.9PF>0.9
Color Temperature2700-6500K2700-6500K2700-6500K2700-6500K2700-6500K2700-6500K2700-6500K2700-6500K
CRIRa>70Ra>70Ra>70Ra>70Ra>70Ra>70Ra>70Ra>70
Optics120°120°120°120°120°120°120°120°
Working Temperature-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃-30℃ ~+50℃
Lifetime(hrs)5000050000500005000050000500005000050000
Product Size(mm)127x159x44148x188x43193x242x46237x294x48281x344x56320x424x62
337x477x63407x570x70
Pcs/CTN3020
15
10
5432
Net Weight12.0kgs
8.8kgs11.5kgs
11.0kgs12.5kgs
14.5kgs11.8kgs12.2kgs
Gross Weight13.0kgs9.8kgs12.5kgs12.0kgs13.5kgs15.5kgs12.8kgs13.2kgs
Packing size(mm)538x146x580613x172x560601x266x300
512x312x305397x327x405
490x385x331
550x417x263627x457x183


Detail Pictures:

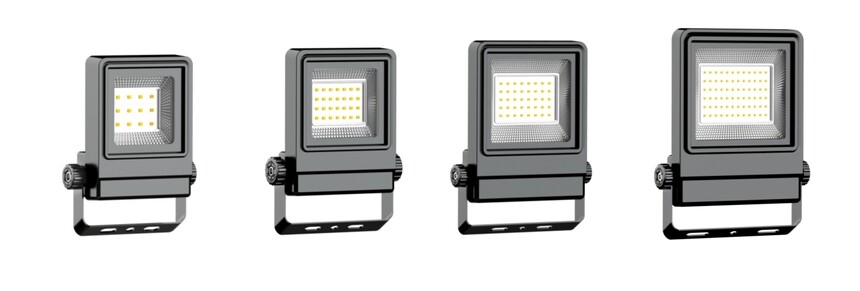

                        10W                                     20W                                 30W                                       50W

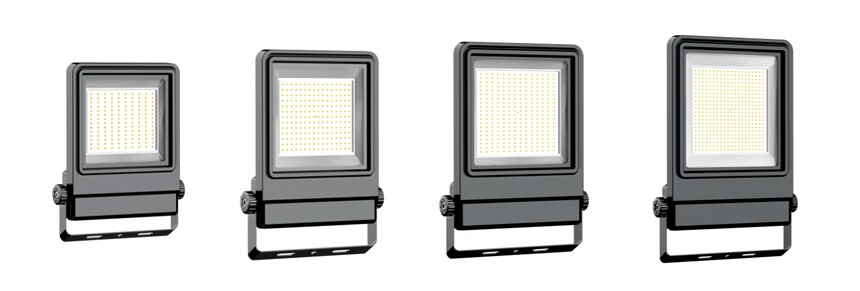

                       100W                                 150W                                   200W                                  300W

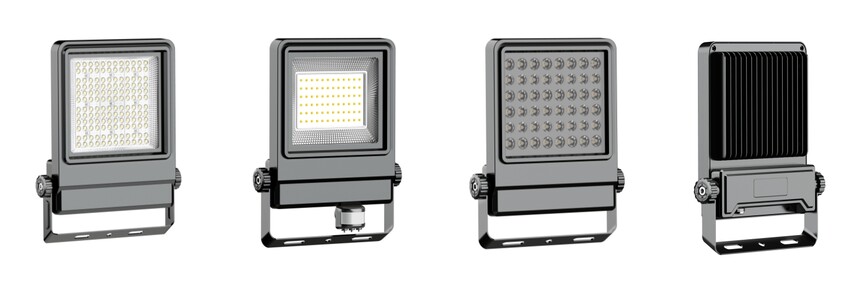

            5050lens type                          Sensor type                          Module lens type                          Back
