Product Detail

SGD07

SGD07 Garden Light

Wattage:30-60W

Voltage:AC90-305V

IP Rate:IP65

Product Size:666x666x560mm

                     764x764x260mm

Package Size:715x685x280mm


Collect
产品编号 SGD07
  • Description

Advantage for SGD07 Garden Light

 -Pure Die Casting Aluminum Housing,Tempered glass Cover with UV-resistant Polycarbonate;

 -Power Range: from 30W up to 60W;

 - Philips Lumileds LEDs;other brands on request;

 - High End Programmable Inventronics LED Driver, other brands on request;

 - Luminaire Efficiency up to 90 lm/W - 110 lm/W

 - With Surge Projector to protect lamp from up to 10KV/10KA;

 - Multiple Light Distribution;

 - We can provide professional customized services.the packaging logo and manual can be modified according to customers requirements.

Specification

Model                                SGD07

Power

30-60W

LED brand

Philips/CREE/other brand

Driver brand

Inventronics/Meanwell/Sosen

Color Temperature

3000~6500K

Efficiency

90-110LM/W

Voltage

AC90-305V

Power Factor

PF≥0.95

CRI(Ra)

Ra≥70(80optional)

Ambient Temperature

-40-50℃

Ambient Humidity

20%-90%RH

Lifetime(hrs)

50000

IP Rate

IP65

Installation Pipe Diameter

Φ60/76mm

Installation Height

4-8m

Product Size(mm)

                         Φ666x560/764x260

Net Weight

14.2kg

Gross Weight

16.2kg

Packing Size(mm)

    715x685x280

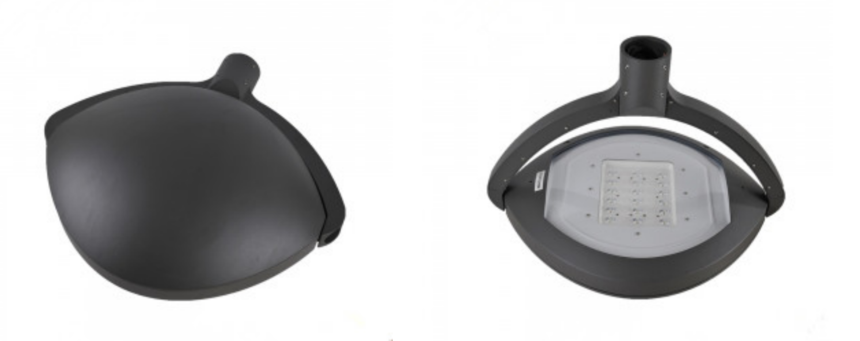

Pictures

                                               Front                                                                                                       Back

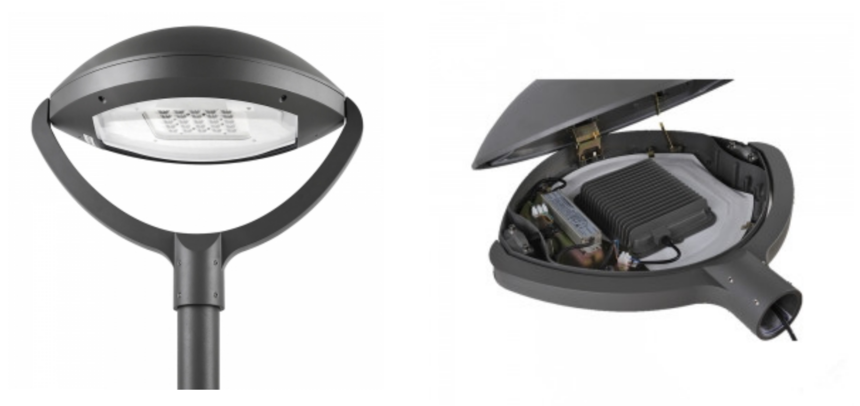

                                       Side                                                                                Open

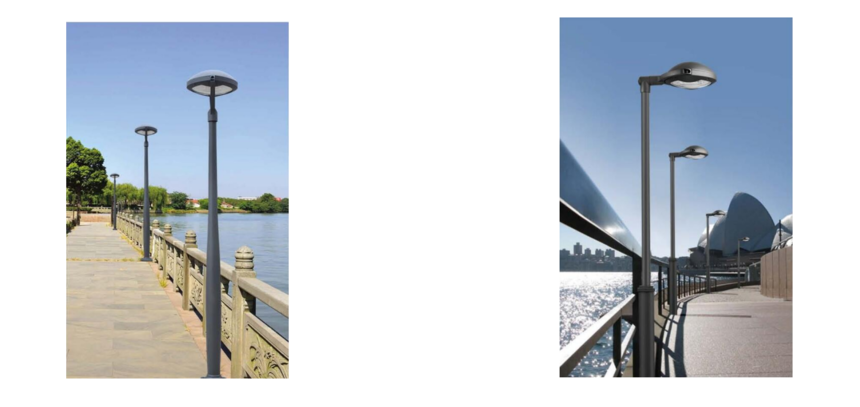

Installation

    The model have two ways to install with the pole.

                                      Option 1                                                                                                       Option 2

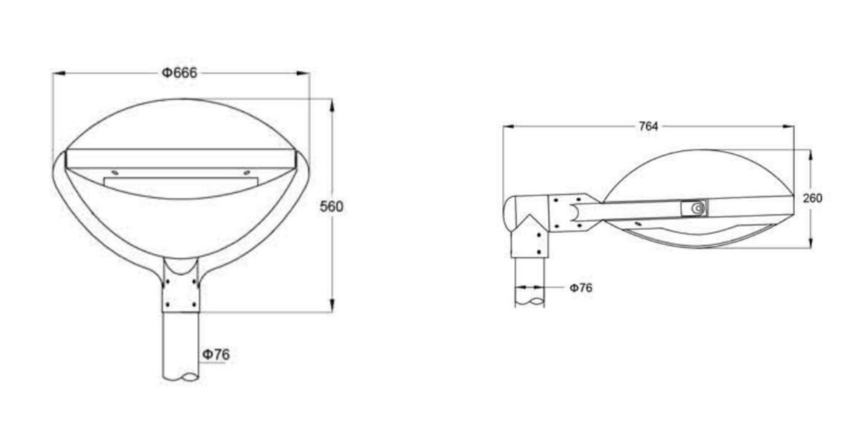

Line Drawing

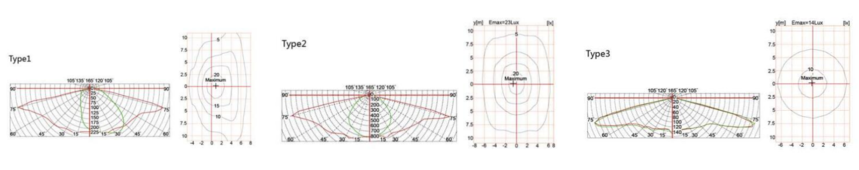

Light distributions

SGD07-1.pngPackage
