SGD04

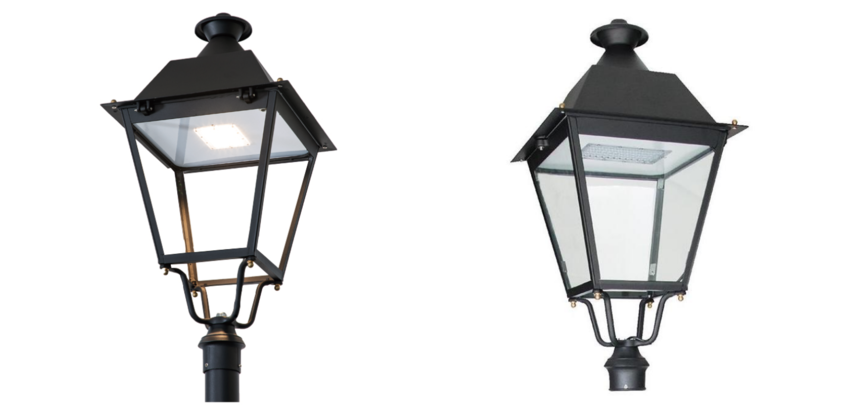

SGD04 Garden Light

Wattage:20-90W

Voltage:AC90-305V

IP Rate:IP66

Product Size:440x440x770mm

Package Size:430x430x660mm

Collect

产品编号 SGD04

Advantage for SGD03 Garden Light

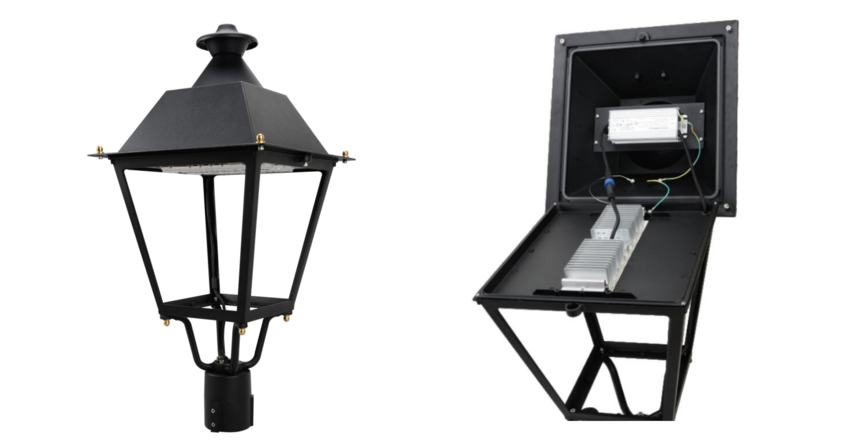

-Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

-Power Range: from 20W up to 90W;

- Philips Lumileds LEDs;other brands on request;

- High End Programmable Inventronics LED Driver, other brands on request;

- Luminaire Efficiency up to 90 lm/W - 120 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

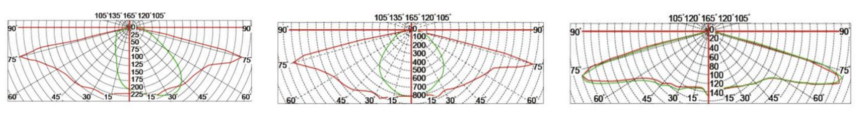

- Multiple Light Distribution;

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.

Specification

Model	SGD04
Power	20-90W
LED brand	Philips/CREE/other brand
Driver brand	Inventronics/Meanwell/Sosen
Color Temperature	3000~6500K
Efficiency	90-120LM/W
Voltage	AC90-305V
Power Factor	PF≥0.95
CRI(Ra)	Ra≥70(80optional)
Ambient Temperature	-40-50℃
Ambient Humidity	20%-90%RH
Lifetime(hrs)	50000
IP Rate	IP66
Installation Pipe Diameter	Φ76mm
Installation Height	4-8m
Product Size(mm)	440x440x770
Net Weight	4.5kg
Gross Weight	6.0kg
Packing Size(mm)	430x430x660
