SGD05

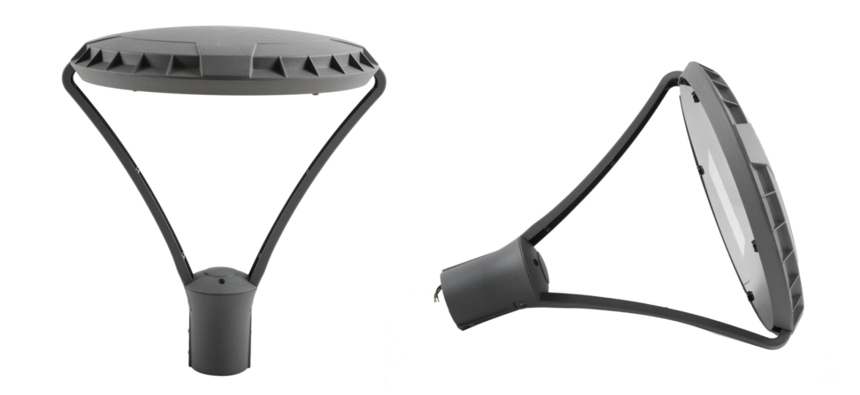

SGD05 Garden Light

Wattage:30-150W

Voltage:AC90-305V

IP Rate:IP65

Product Size:450x450x523mm

Package Size:610x605x150mm

Collect

产品编号 SGD05

Advantage for SGD05 Garden Light

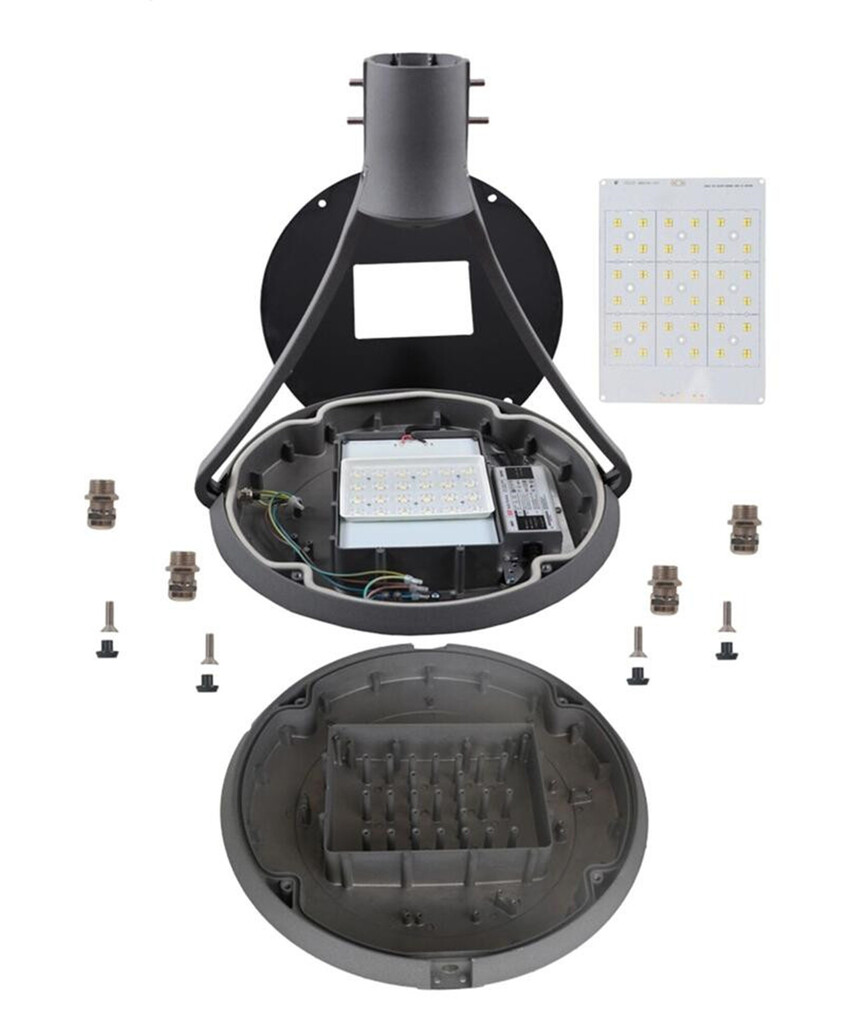

-Pure Die Casting Aluminum Housing,Tempered glass Cover with UV-resistant Polycarbonate;

-Power Range: from 30W up to 150W;

- Philips Lumileds LEDs;other brands on request;

- High End Programmable Inventronics LED Driver, other brands on request;

- Luminaire Efficiency up to 90 lm/W - 130 lm/W

- With Surge Projector to protect lamp from up to 10KV/10KA;

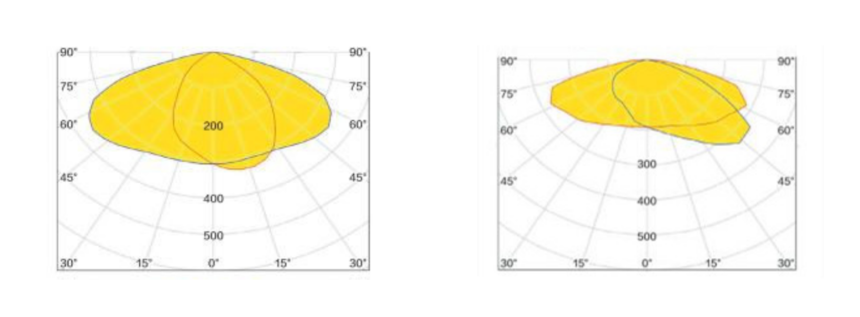

- Multiple Light Distribution;

-Suitabele for install with three size lamp poles which is 48/60/67mm diameter and easy to installation.

- We can provide professional customized services.the packaging logo and manual can be modified according to customer’s requirements.

Specification

Model	SGD05
Power	30-150W
LED brand	Philips/CREE/other brand
Driver brand	Inventronics/Meanwell/Sosen
Color Temperature	3000~6500K
Efficiency	90-130LM/W
Voltage	AC90-305V
Power Factor	PF≥0.95
CRI(Ra)	Ra≥70(80optional)
Ambient Temperature	-40-50℃
Ambient Humidity	20%-90%RH
Lifetime(hrs)	50000
IP Rate	IP65
Installation Pipe Diameter	Φ48/60/76mm
Installation Height	4-8m
Product Size(mm)	450x450x523
Net Weight	7.0kg
Gross Weight	8.0kg
Packing Size(mm)	610x605x150
