SGD03

SGD03 Garden Light

Wattage:30-80W

Voltage:AC90-305V

Product Size:593x593x523mm

Package Size:540x540x540mm




Collect
产品编号 SGD03
  • Description

Advantage for SGD03

- Pure Die Casting Aluminum Housing, Tempered glass Cover with UV-resistant Polycarbonate;

 -Power Range: from 30W up to 80W;

 - Philips Lumileds LEDs;other brands on request;

 - High End Programmable Inventronics LED Driver, other brands on request;

 - Luminaire Efficiency up to 90 lm/W - 120 lm/W

 - With Surge Projector to protect lamp from up to 10KV/10KA;

 - Multiple Light Distribution;

 - We can provide professional customized services.the packaging logo and manual can be modified according to customers requirements.


Specification

Model                                SGD03

Power

30-80W

LED brand

Philips/CREE/other brand

Driver brand

Inventronics/Meanwell/Sosen

Color Temperature

3000~6500K

Efficiency

90-120LM/W

Voltage

AC90-305V

Power Factor

PF≥0.95

CRI(Ra)

Ra≥70(80optional)

Ambient Temperature

-40-50℃

Ambient Humidity

20%-90%RH

Lifetime(hrs)

50000

IP Rate

IP66

Installation Pipe Diameter

Φ76mm

Installation Height

4-8m

Product Size(mm)

593x593x523

Net Weight

6.5kg

Gross Weight

8.0kg

Packing Size(mm)

                540x540x540

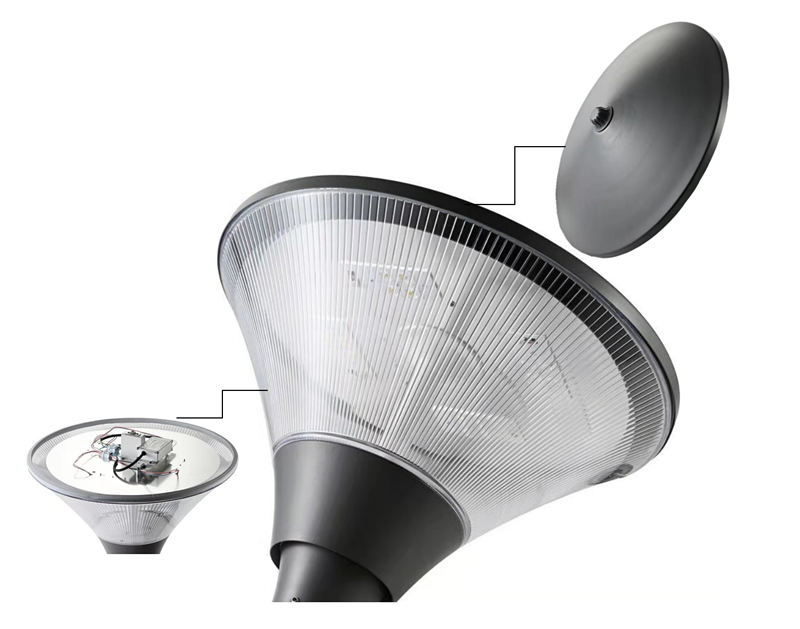

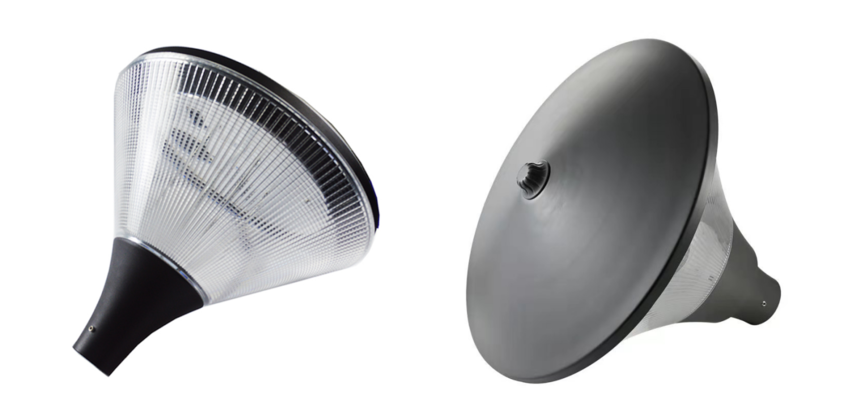

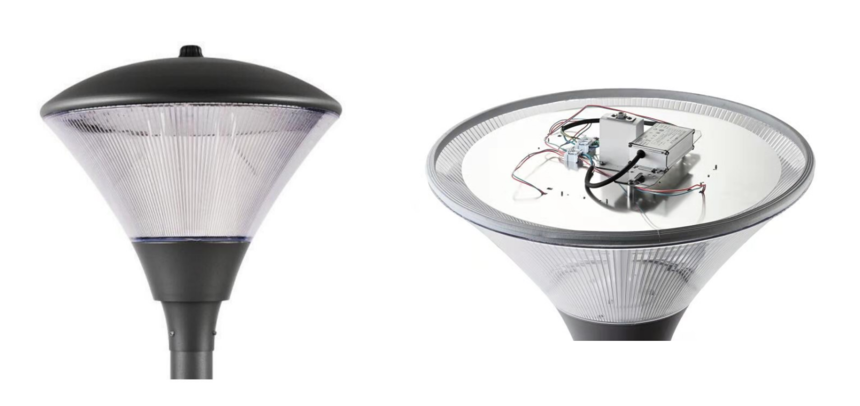

Pictures

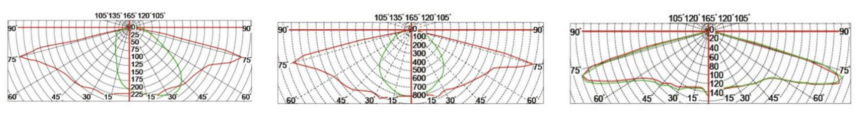

Light distributions

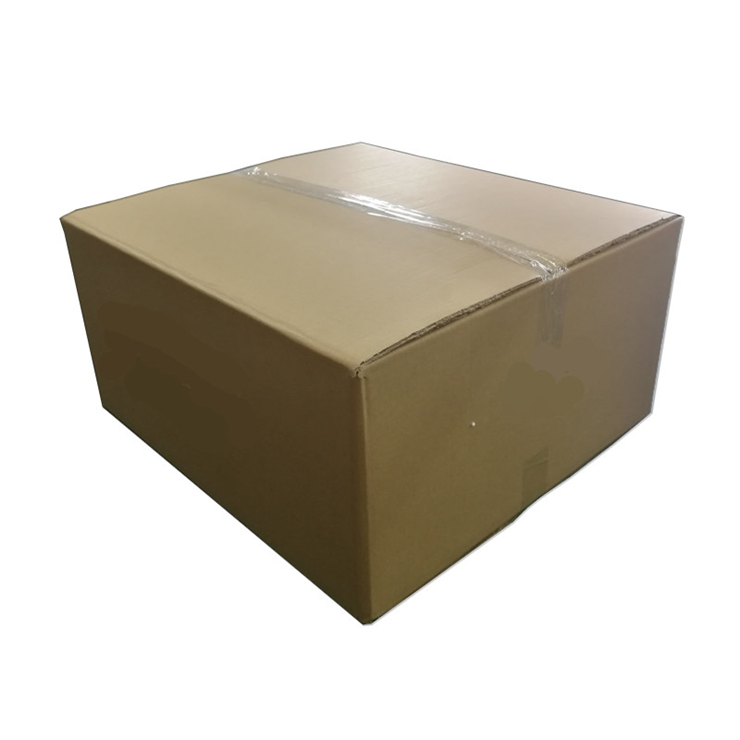

Package
