These series solar street lights have main advantages as below:
- Pure Die Casting Aluminum Housing, good at heat dissipation
- Power Range: from 10W up to 120W;
- Use High bright LED chip, brand of LED can be optional;
- Luminaire Efficiency up to 160-180 lm/W;
- The lamp can automatic charging in the daytime.it also can automatic lighting at night;
- We offer 5 years warranty for this model solar street light;
Applications
Street | Road | Highway | Parking lot | Bridge | Path | Viaduct | Public area | Industrial area
Specification:
Model No
| SSL6S-S | SSL6S-M | SSL6S-L | SSL6S-XL |
Power | 10-20W | 30-40W | 60-80W | 100-120W |
Light Sources Types | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
| LED quantity | 28pcs | 28pcs | 56pcs
| 112pcs |
Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
Efficiency | 160-180lm/w | 160-180lm/w | 160-180lm/w | 160-180lm/w |
Power Factor
| PF≥0.9 | PF≥0.9 | PF≥0.9 | PF≥0.9 |
CRI | Ra>70 | Ra>70 | Ra>70 | Ra>70 |
| Optics | Type II | Type II | Type II | Type II |
Solar panel | 18V 30W Monocrystalline Panel | 18V 50W Monocrystalline Panel | 18V 95W Monocrystalline Panel | 36V 145W Monocrystalline Panel |
Solar panel size | 560x360mm | 790x360mm | 1010x520mm | 1400x545mm |
| Battery Capacity | 12.8V 6.5-10.2 AH LiFeO4 | 12.8V 20.4-34 AH LiFeO4 | 12.8V 44.2-51 AH LiFeO4 | 25.6V 34-47.6AH LiFeO4 |
Ambient Temperature | -20~+50℃ | -20~+50℃ | -20~+50℃ | -20~+50℃ |
Charging time | 6hours | 6hours | 6hours | 6hours |
| Run time | 2-3 days autonomy | 2-3 days autonomy | 2-3 days autonomy | 2-3 days autonomy |
Installation Pipe Diameter | Φ50/60mm | Φ50/60mm | Φ60mm | Φ60mm |
| IP Rate | IP66 | IP66 | IP66 | IP66 |
| Warranty | 5years | 5years | 5years | 5years |
| Product Size(mm) | 560x360x265
| 790x360x311
| 1010x520x317
| 1400x545x838 |
| Packing Size(mm) | 735x420x128
| 968x417x135
| 1198x585x135 | 1410x465x200
|

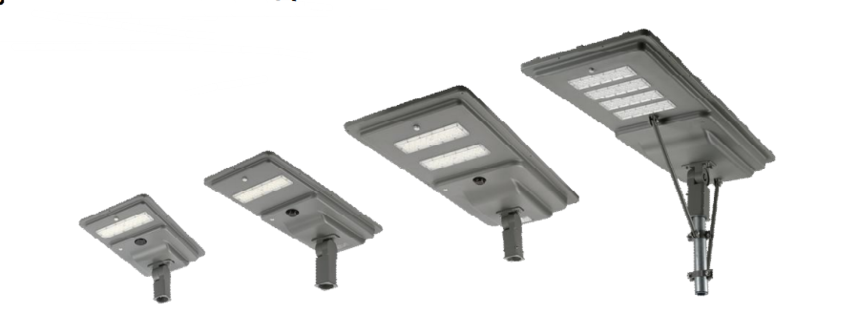

Detail Picture

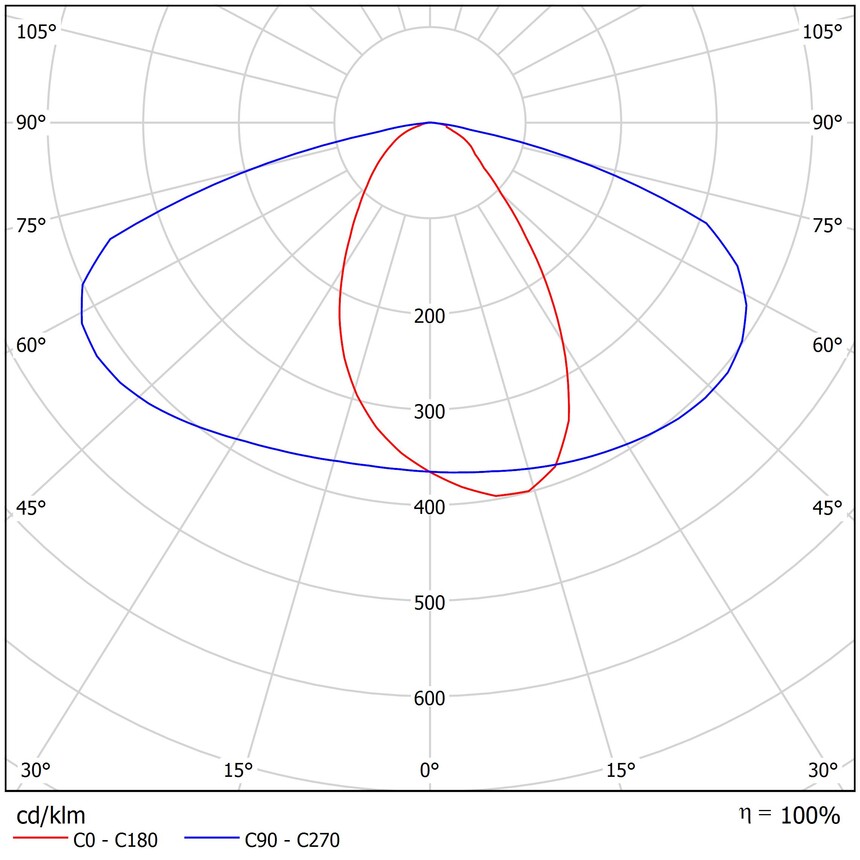

Lighting Photometrics:
